    A/C questions 1965 Fastback

    I am putting together A/C on my Fastback and using original stuff, evaporator, concenser etc. and I was wondering if anyone could either send out a picture or give me dimensions as to where do the lines from the compressor go through the core support to the drier.

    Also does the original stuff cool the Mustangs adequate?  The condenser seams quit small.  The interior of the cars asn't real large I know.  Anyway, thanks for input.

    "when I drop something, it always goes to center of the car"


    8/31/2014 8:49 AM  #2

    Bullet Bob
    Senior 24-7 FYI Addict

    Offline

    From: Montrose, Colorado
    Registered: 4/01/2013
    Posts: 4,939

    Re: A/C questions 1965 Fastback

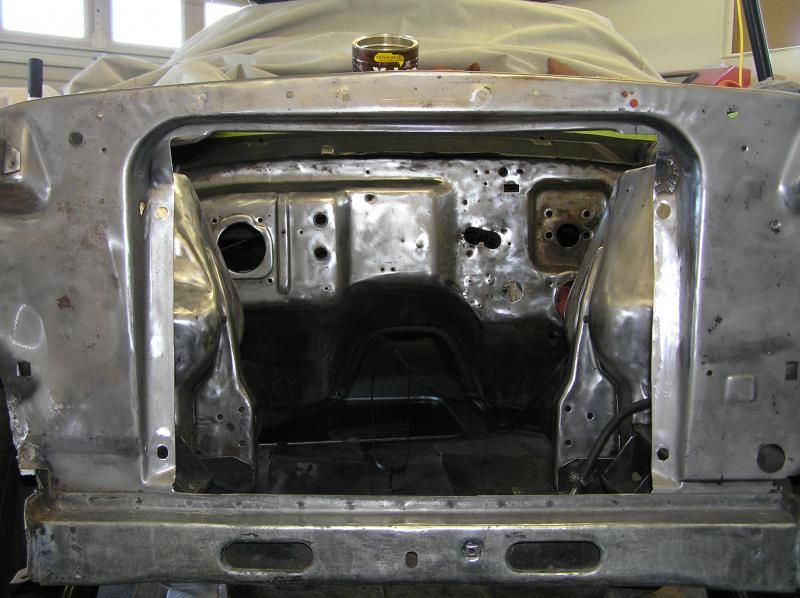

    Here's a picture of our 66 way back when.  The original AC lines went throug the core support at the top left, above the top rad. bolt (you can see where I filled it) and came back in to the dryer at the bottom left of  the support.  The dryer was mounted low on the forward left inner fender apron, right in front of the tower.


    The low pressure line to the compressor  and the HP line from the dryer went to the evaporator through an oval factory knock-out in the firewall above and to the right of the throttle hole.
    Here's another pic from way back when.  Throttle hole has a rag in it, AC hole above and right.

    Last edited by Bullet Bob (8/31/2014 8:54 AM)

    "you get what you pay for, good work isn't cheap, and there are NO free lunches...PERIOD!"


    8/31/2014 10:32 AM  #3

    boomyal
    Senior 24-7 FYI Addict

    Offline

    From: Vancouver, Washington
    Registered: 4/01/2013
    Posts: 1,295

    Re: A/C questions 1965 Fastback

    In the picture below you can clearly see the top hose going thru the core support.  It's a little harder to see the bottom metal line.  If you look closely, just to the right of the convertible core support tube and just underneath where the wires from the regulator come out of their wrap, you can see the edge of the split bushing that the lower line goes thru.  Hope this helps.






    8/31/2014 8:39 PM  #4

    retired 65
    I FYI 24-7

    Offline

    From: nixa, mo.
    Registered: 4/02/2013
    Posts: 336

    Re: A/C questions 1965 Fastback

    thanks to everyone for the info.  I can get 'er done now.

    "when I drop something, it always goes to center of the car"
       •Thread Starter


    9/01/2014 2:09 PM  #5

    MS
    Forum Originator

    Offline

    From: Canyon Lake, Texas
    Registered: 1/24/2013
    Posts: 12,688

    Re: A/C questions 1965 Fastback



    65 GT with factory AC

    Money you enjoy wasting is NOT wasted money... unless your wife finds out.
